Workshop parts / F3D-DUST01
Dust-collection replacement cup

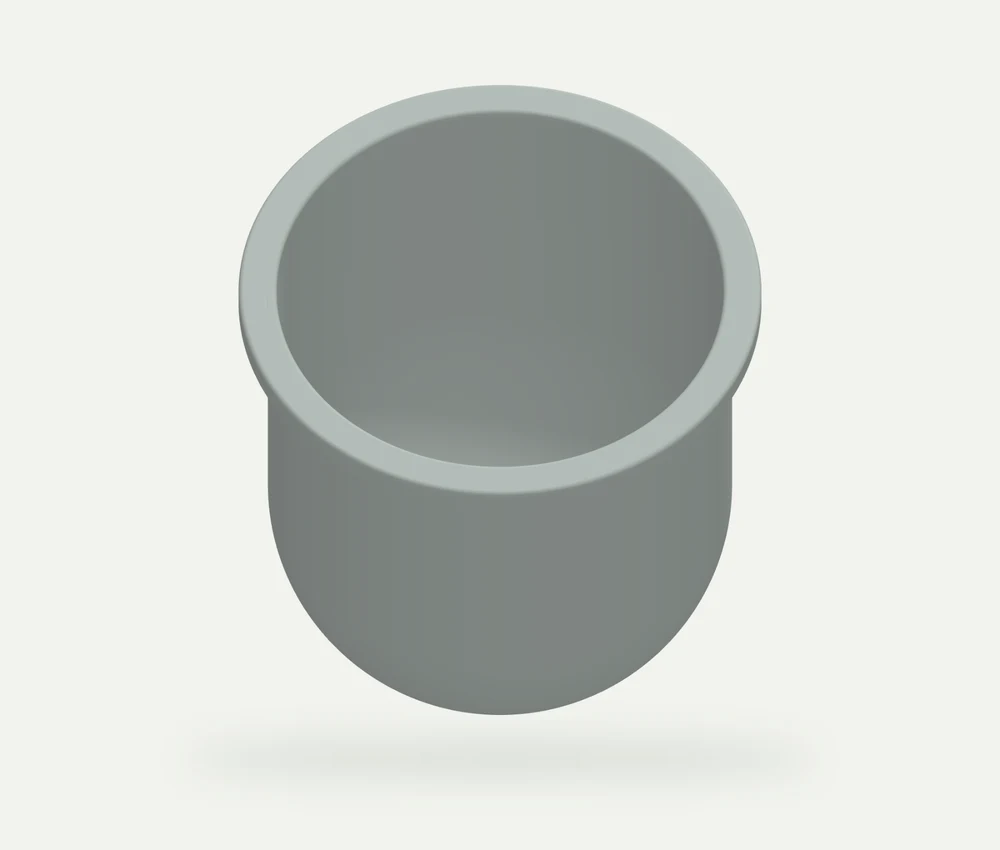

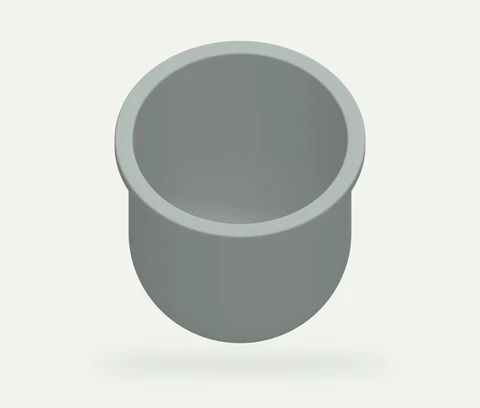

A hollow ASA replacement cup with a wide locating rim, recreated from an original dust-collection part.
$29.99 CAD · per printed cup
CHECK THE SIZE
Size & measurements
- Overall (rim diameter × height)
- 96.30 × 100.00 mmApprox. 3.79 × 3.94 in
- Straight body outside diameter
- 85.50 mmApprox. 3.37 in
- Inside diameter below the rim
- 82.20 mmApprox. 3.24 in
Approximate measurements from the model, rounded to 0.01 mm. The inside diameter is measured just below the rim; the rounded closed end narrows further in. We confirm mounting clearances and printed fit before an order.
Parts subtotal$29.99 CAD
Opens an email to sales@fast3dprints.ca with this part and quantity filled in. We’ll confirm fit, timing, delivery and the final total with you.
- Material
- ASA
- Part
- Hollow dust-collection cup with flared rim
- Supply
- One printed cup
About this part

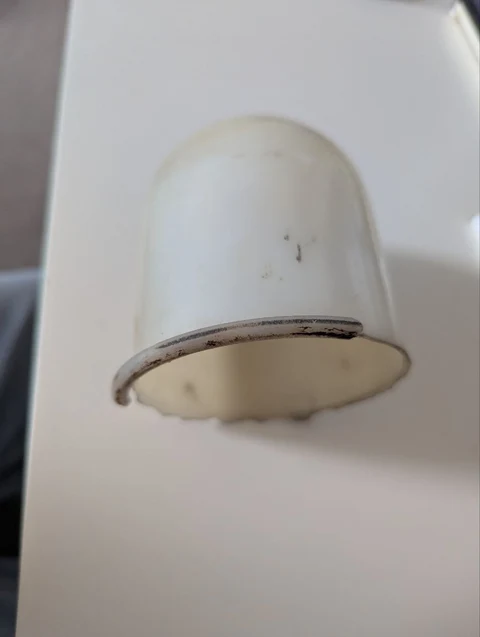

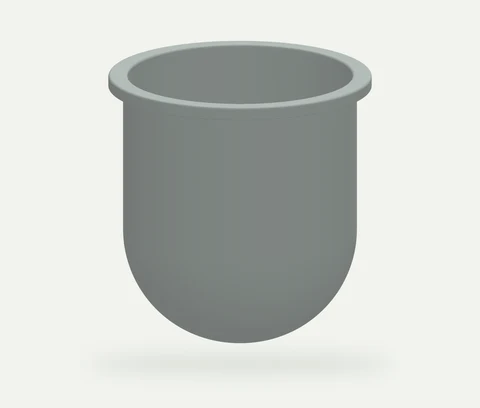

A cracked or missing cup can put a useful dust collector out of action. This replacement was modelled from an original sample, with a hollow body, rounded closed end and flared rim. The straight body is about 85.5 mm across, while the rim is wider at about 96.3 mm. We print the matching cup in ASA and check your mounting arrangement before making it.
Will it fit?
Send the dust collector make and model, a photo of the old cup and the opening it fits into. Compare the rim, straight body and inside diameter below the rim, along with any seal or retaining arrangement. The original project called it an approximately 4-inch cup; the measured rim is 96.30 mm, so the 4-inch description alone is not a fit check.
Material & fit guides
- Prusa ASA material guide
ASA is used for its resistance to sunlight and weather. The final part still needs to suit its working conditions.
What’s included
- One physical 3D-printed ASA cup
- The hollow body, rounded closed end and locating rim shown
Cup only. Seals, clips, filters and the dust collector are not included. Tell us what you collect and the working temperature so we can confirm that the part suits your setup.
We supply the physical print. CAD, STL and other digital design files are not included or offered for download.
Pickup, shipping & ordering
Local pickup in Barrie is by arrangement. Ask us about shipping when you enquire. Sending an email starts a conversation; we’ll agree on the part, price, delivery and timing before work begins.
Need a different colour, size or material? Include that in your message and we’ll check what’s possible.
