Window hardware / F3D-WIN01
Window slider replacement set
A two-piece ASA replacement set for the matching spring-loaded window slider, using your existing metal springs.
$11.99 CAD · per 2-piece printed set
CHECK THE SIZE
Size & measurements

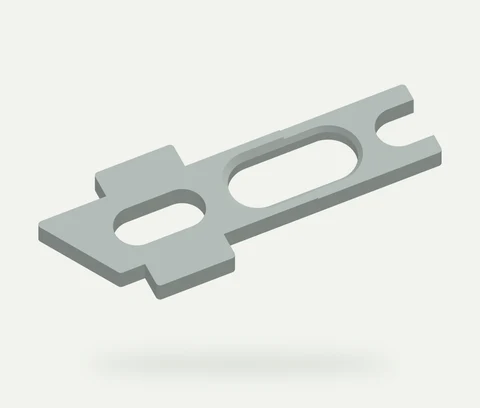

- Component A · slider (L × W × thickness)
- 74.50 × 27.98 × 4.52 mmApprox. 2.93 × 1.10 × 0.18 in

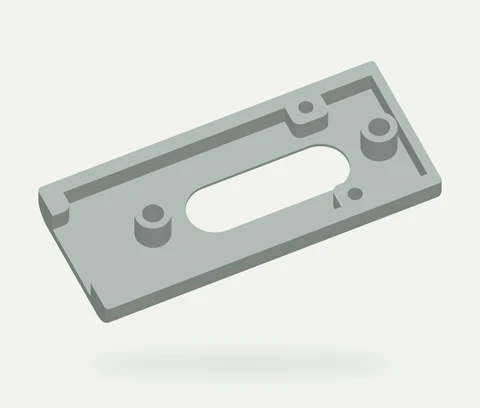

- Component B · housing (L × W × depth)
- 80.03 × 35.35 × 10.57 mmApprox. 3.15 × 1.39 × 0.42 in
Approximate overall size of each separate component, rounded to 0.01 mm. These are not assembled dimensions. Mounting, spring and running clearances are checked against your original parts.
Parts subtotal$11.99 CAD
Opens an email to sales@fast3dprints.ca with this part and quantity filled in. We’ll confirm fit, timing, delivery and the final total with you.
- Material
- ASA
- One set
- 1 moving slider + 1 housing (2 plastic pieces)
- Hardware
- Original springs reused; hardware excluded
About this part

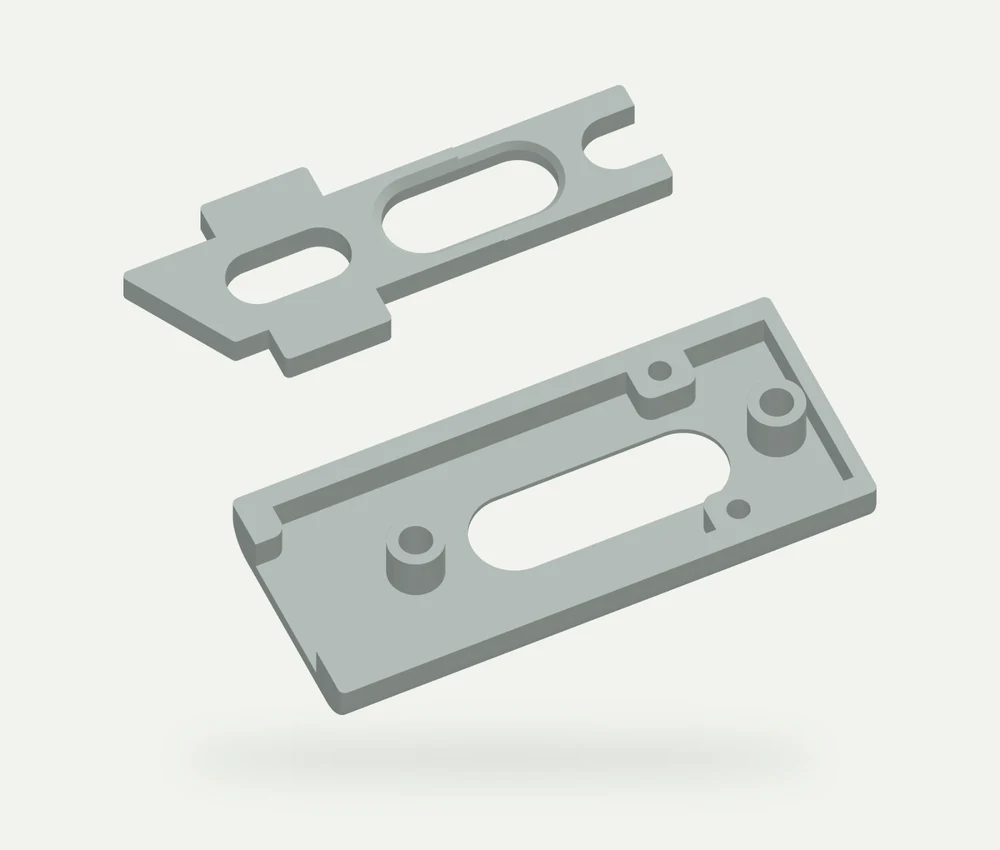

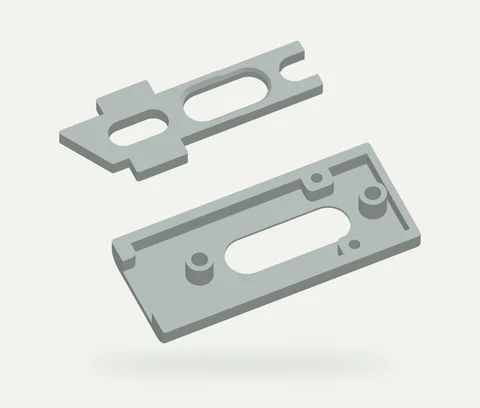

Keep the window hardware you already have with a replacement for its worn plastic pieces. One set contains the thin moving slider (component A) and the deeper housing (component B), shown separately in the model preview. Their slots, guides and mounting features were recreated from an original sample. We print both in ASA and compare them with your old mechanism before confirming the order.
Will it fit?

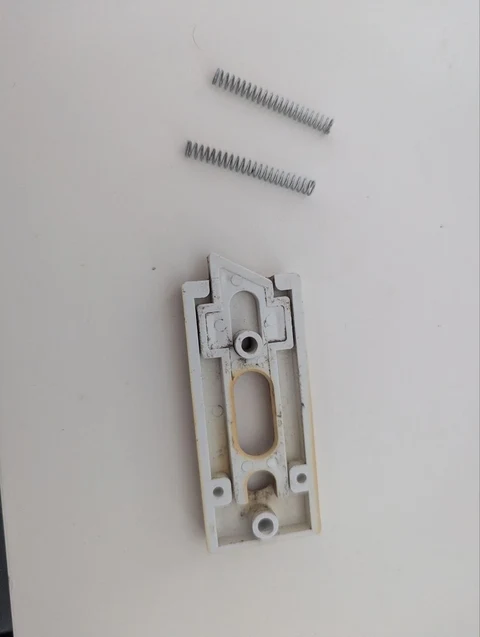

Send photos of both sides of the removed slider and housing, plus the window brand or profile if known. Compare each component with the sizes below, then check mounting-hole centres, slot positions, spring seats and the direction the slider moves. Similar-looking window hardware can use different internal shapes. We confirm a sample fit before a larger matching batch.
Material & fit guides
- Prusa ASA material guide
ASA is used for its resistance to sunlight and weather. The final part still needs to suit its working conditions.
- SWISCO window-latch measurement guide
Shows why hole spacing, offsets and underside details matter when comparing window hardware. This is a measurement guide, not a confirmed match to a SWISCO part.
What’s included
- One component A: thin moving plastic slider
- One component B: deeper plastic housing
- Two printed plastic pieces in each set
Reuse the original steel springs and other serviceable hardware; springs, screws and installation are not included. One set is one slider-and-housing combination, rather than two complete mechanisms. The window make and exact hardware model have not been identified.
We supply the physical print. CAD, STL and other digital design files are not included or offered for download.
Pickup, shipping & ordering
Local pickup in Barrie is by arrangement. Ask us about shipping when you enquire. Sending an email starts a conversation; we’ll agree on the part, price, delivery and timing before work begins.
Need a different colour, size or material? Include that in your message and we’ll check what’s possible.
